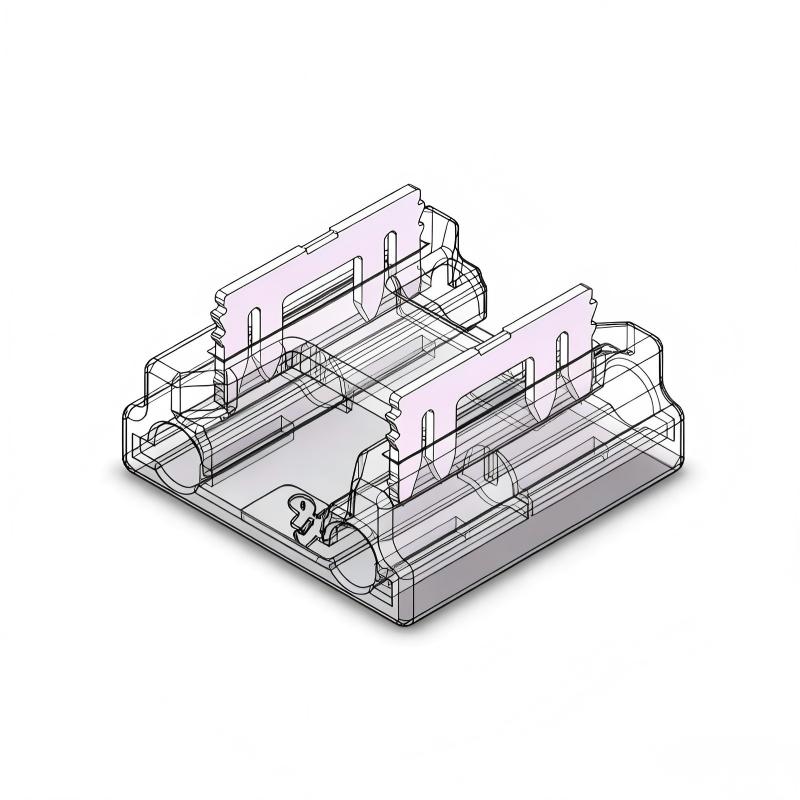

2-PIN Strip Connector for 10MM wide PCB Australia Stock（10pcs/Bag ）

4-in-1 DIY function、2-pin connector 、Compatible with 10MM bare board COB/SMD LED strips、20AWG wire required | In Stock Au Warehouse. Fast Delivery in 1-2days. Trade/Wholesale Available. Bulk Trade Pricing. Local Support & Returns.
ITEM NO: DV-S-SC-2PIN-10MM-Z

$ 2.40/bag Excl.GST

✓ Australia Warehouse Stock
✓ 2-Pin Strip Connector
✓ For 10MM Wide PCB
✓ 4-in-1 Connector
Need Bulk Pricing? Call 04 5984 4358

20 in stock

ADD TO CART

Add to wishlist

Add to compare

Product Introduction

Application

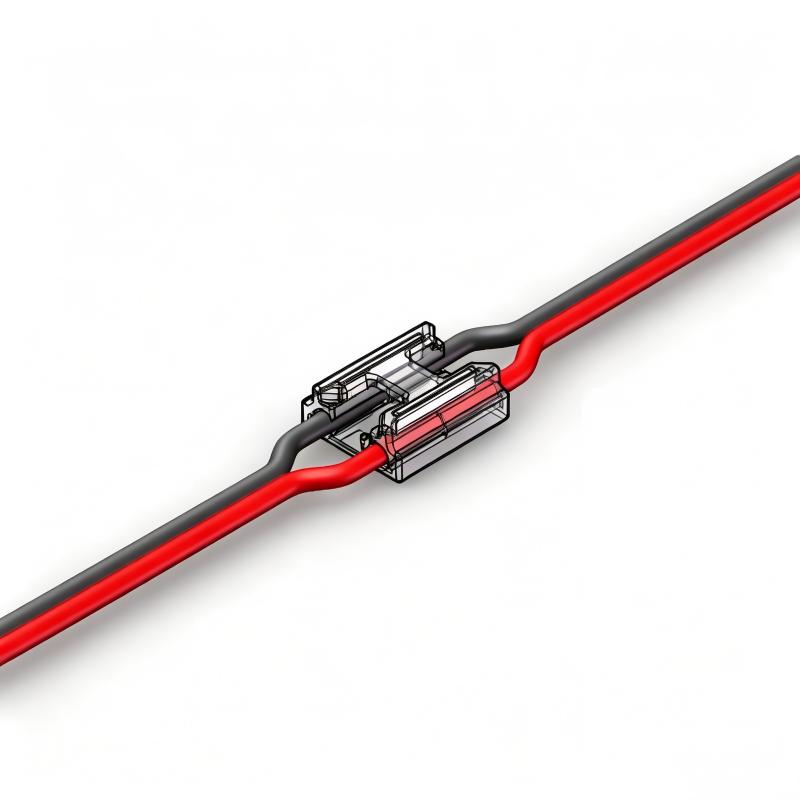

Wire-to-Wire connection

2 Pin Connector for 10mm,Board-to-Board connection .

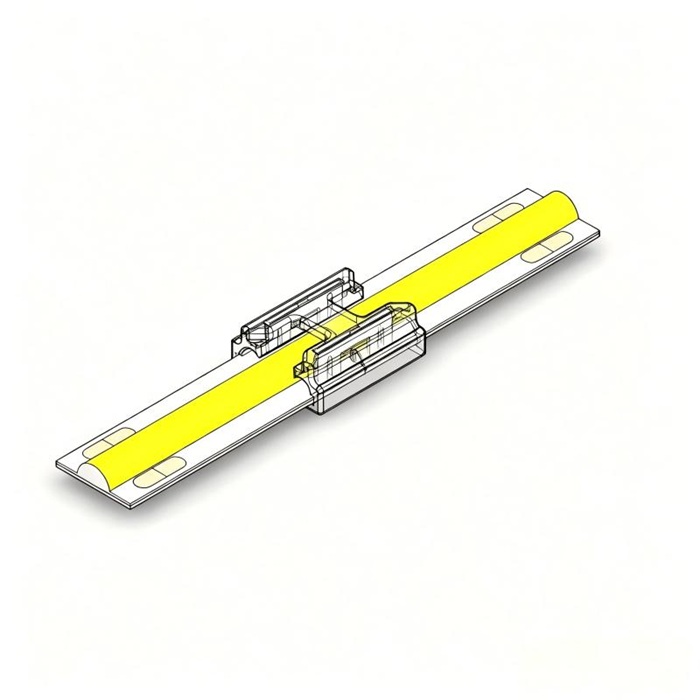

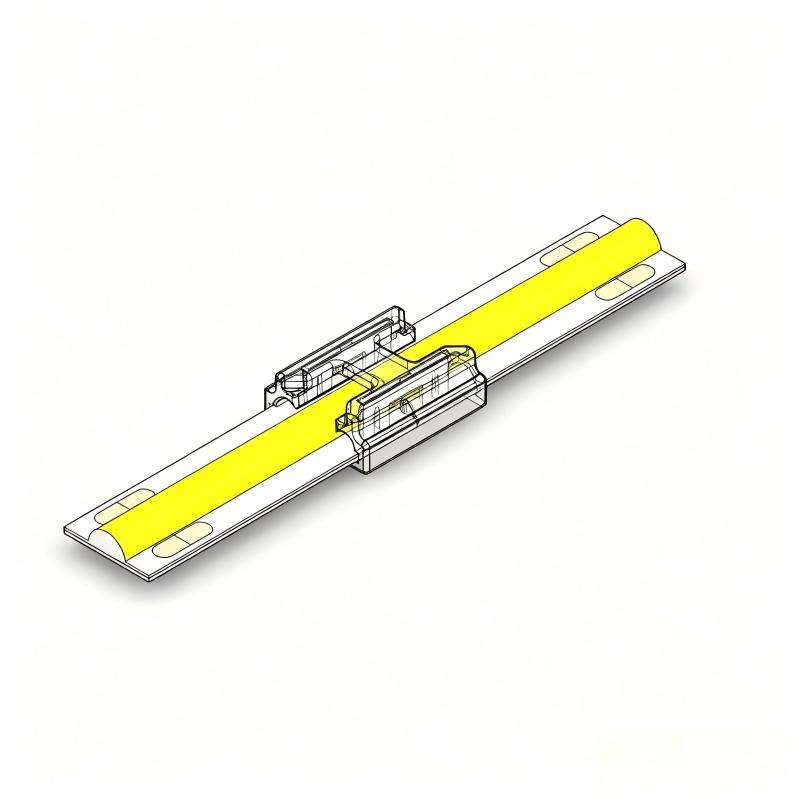

COB LED Strip-to-COB LED Strip connection

2 Pin Connector for 10mm,Board-to-Board connection .

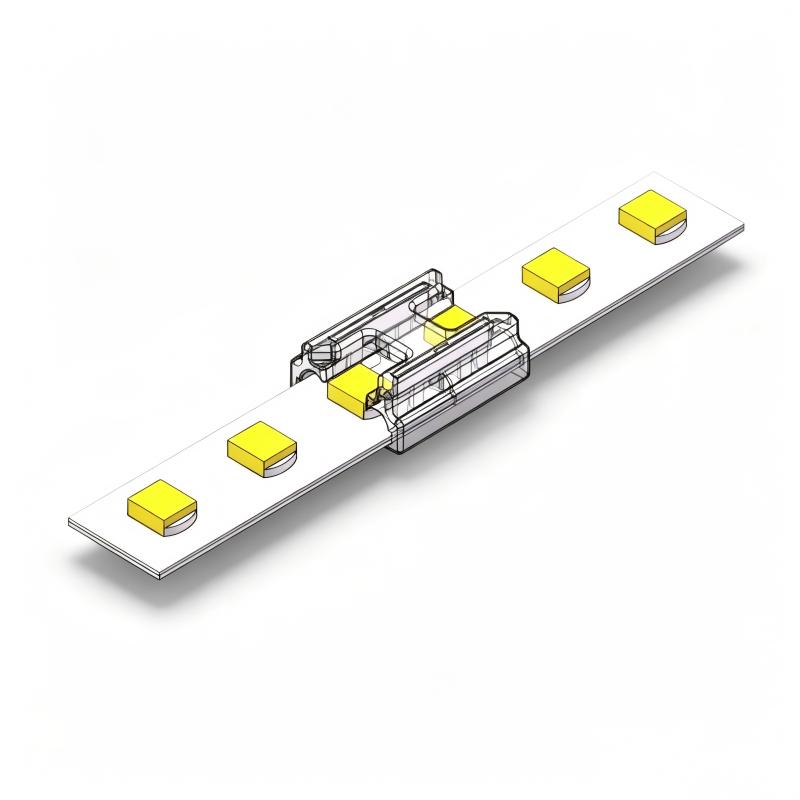

SMD Strip-to-SMD Strip connection

2 Pin Connector for 10mm,SMD Strip-to-SMD Strip connection .

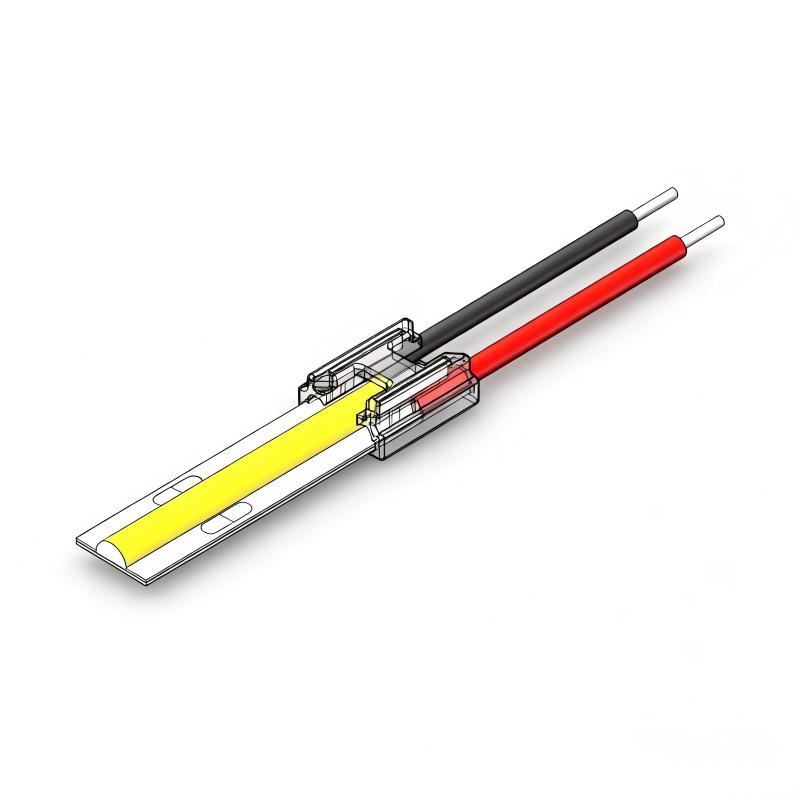

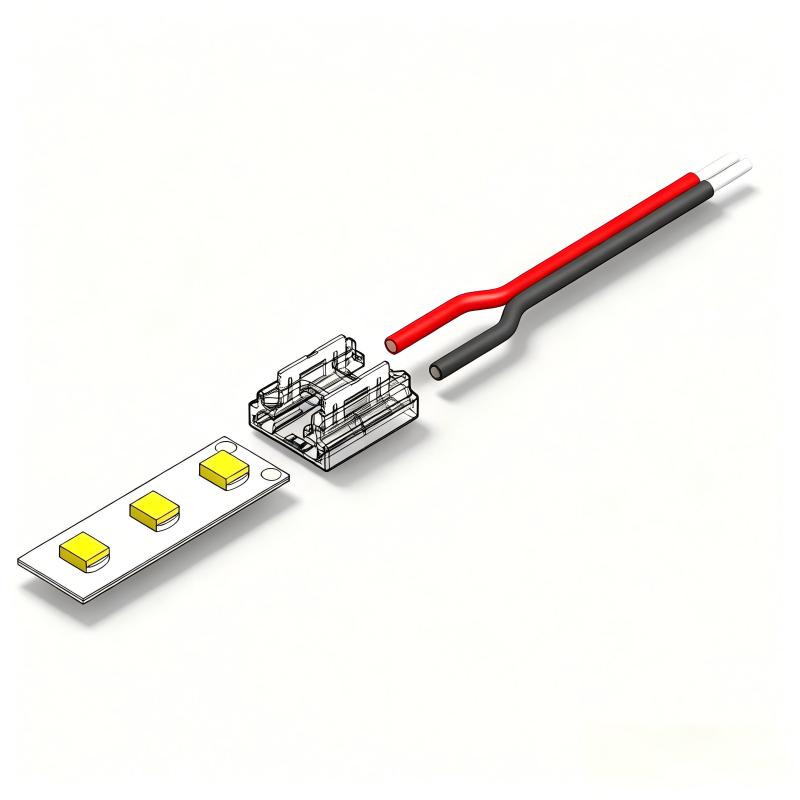

COB LED Strip-to-Wire connection

2 Pin Connector for 10mm,Board-to-Board connection .

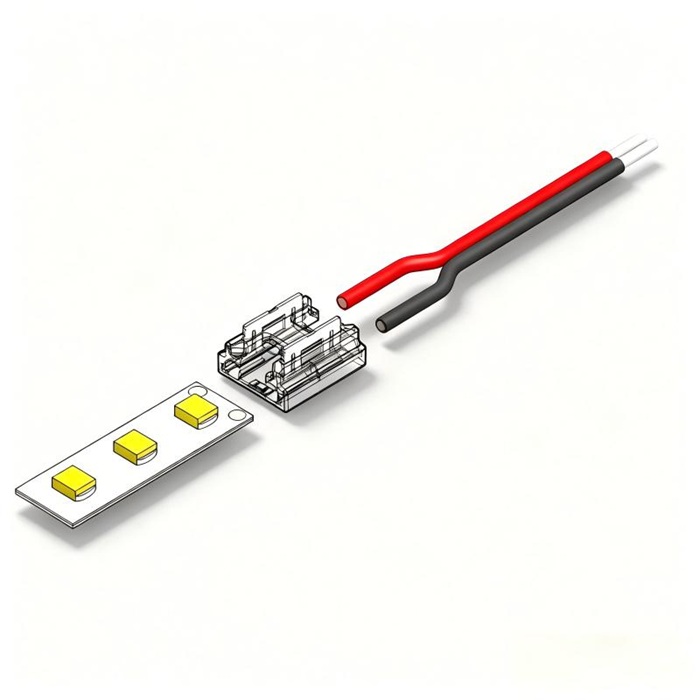

SMD Strip-to-Wire connection

2 Pin Connector for 10mm,SMD Strip-to-Wire connection .

Technical Specification

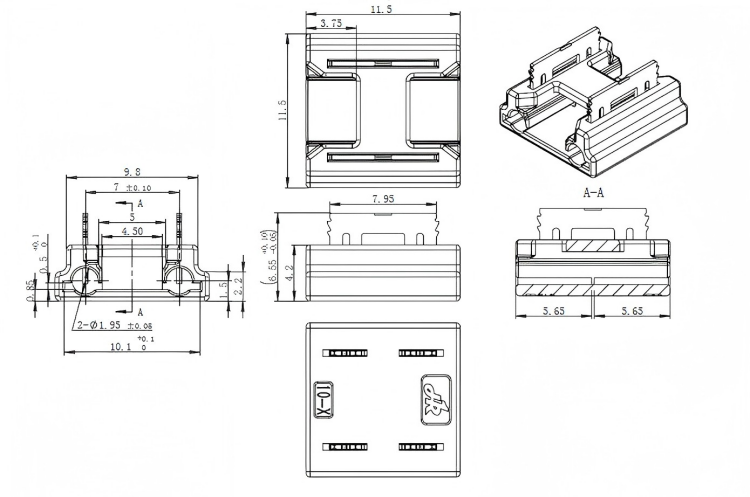

2D engineering dimension drawing of COB LED strip quick connector with full size tolerances.

Rated Current	AWG20: 6A Max
Rated Voltage	5V / 9V / 12V / 18V / 24V / 36V / 48V
Withstand Voltage	500V
Temperature Rating	85℃
Operating Temperature	-20℃ ~ +85℃
Salt Spray Test	Neutral salt spray, 24H
Allowable Humidity	15% ~ 90%
Applicable Wire Gauge	AWG20

Instruction

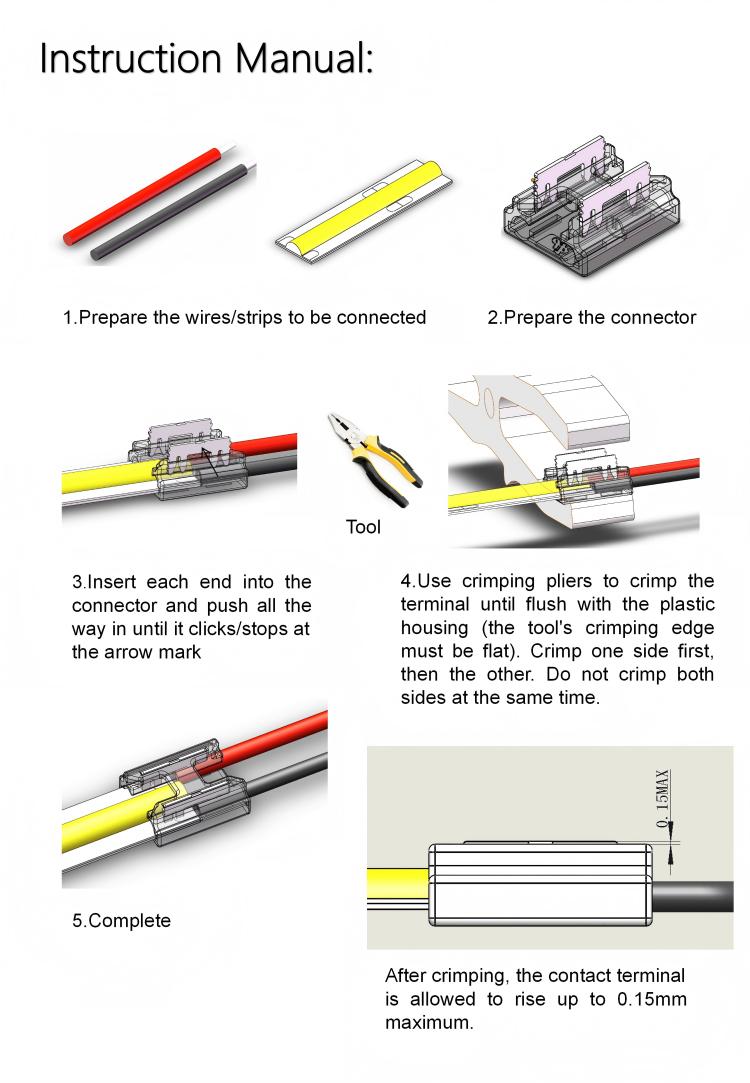

Step-by-step installation instruction diagram for COB LED strip quick crimp connector.
